Instrumentation

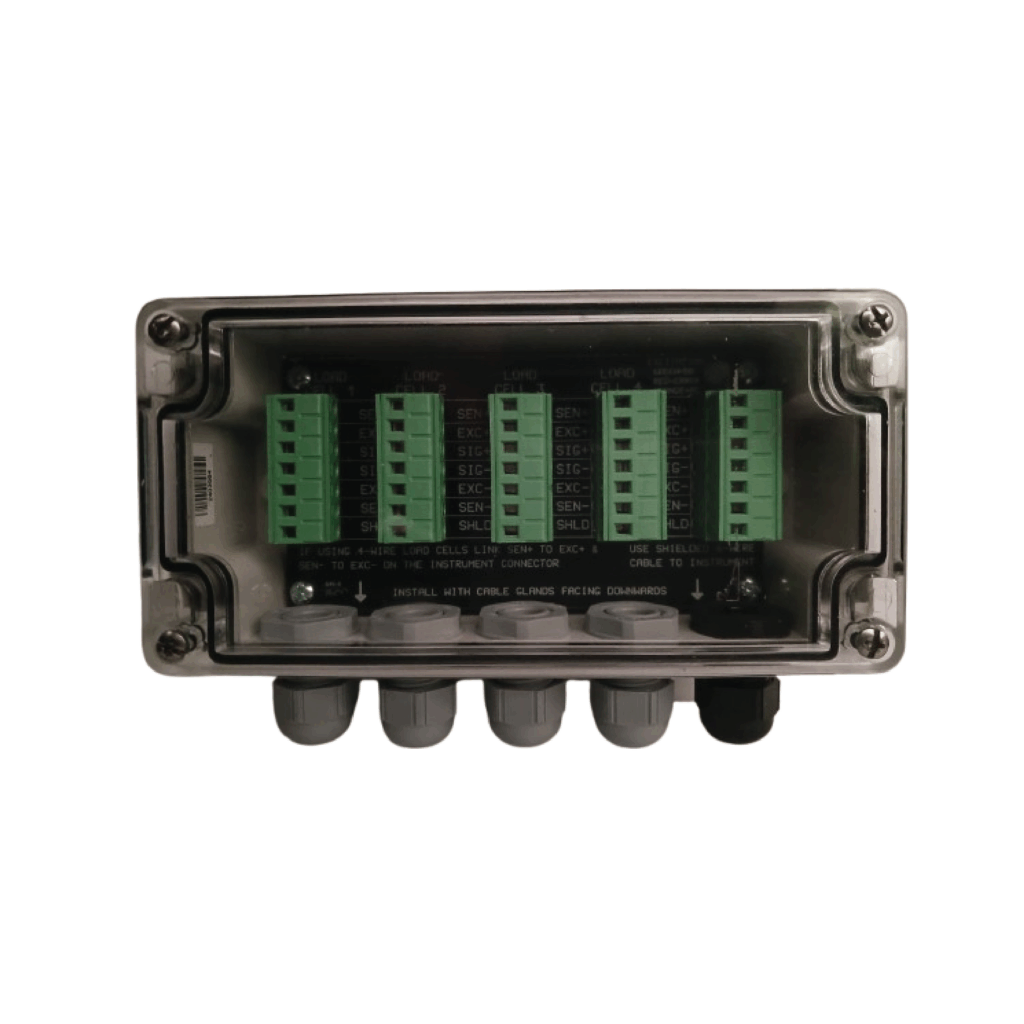

NCS LCJB
5-Way IP65 Junction Box
- Easy connection/summation of up to 4 loadcells in parallel
- IP65 Protection rating
- Red LED indicating the presence of the load cell excitation voltage
- Support 4 or 6 wire load cells
- Clear lid for easy fault finding
- Shielded 6-wire connection to the load cell instrumentation
NCS 1275
- RS232 and RS485 ports
- 1 Second serial data logging to a SD card
- Data is stored in a Comma Separated Variable File (CSV)
- Supports all SD card capacities
- 8-30 VDC switch mode power supply with built-in 33V over voltage and reverse voltage protection
- Extremely easy to install
- Space saving DIN rail mount enclosure
NCS 2400RM Radio Modem
- Radio modem acts as a wireless serial cable replacement and can wirelessly connect various devices together for a large range of applications
NCS TACHO
Complete mounting for beltweigher
- Heavy duty powdercoated steel frame and wheel
- PNP/NPN output (customer selection) normal PNP
- Robust and easy to install
Heavy duty incremental output encoder to calculate speed of a rotating shaft
- Resolution max . 5000 pulses/revolution
- IP65/IP67 protection class
- Robust bearing construction
- -40…85°C operating temperature
- High shock and vibration resistance
NCS 1260
Loadcell surge protector
- Protects signal, supply and shield line; high power triple
- Stage surge protection, suitable for AC or DC load
cell - IP65 Protection rating
- 1 Year Limited warranty
NCS 1820
Passive Loop Isolator
- 4-20 mA input/output passive isolator
- No additional power supply required
- Eliminate ground loop measurement problems
- Two-portion isolation (Between input and output)
- 3kV Isolation Voltage
- Low voltage drop
- High frequency response -2.4 GHz
- Accuracy and linearity between than 0.1% FS
- Can drive an output load up to 300 0hms
- Low-cost high performance design
- Extremely easy to install
- Space saving DIN rail mount enclosure
